The Power of Mass Flow Measurement:
Thermal Mass and Vortex Shedding Flow Meters
When accuracy matters most in gas, liquid, and steam flow measurement, choosing the right flow meter technology can make the difference between costly inefficiencies and optimal performance. Thermal mass flow meters and vortex shedding flow meters represent two proven approaches to precise flow measurement, each offering distinct advantages for industrial applications. Fox Thermal delivers both technologies with innovative features that help engineers and facility managers eliminate downtime and achieve reliable process control. Unlike traditional volumetric flow meters, which require complex calculations and compensation for temperature and pressure to estimate mass flow, thermal mass and vortex shedding flow meters provide direct mass measurement. This capability empowers users to achieve superior accuracy and efficiency, ensuring that critical process variables are managed with confidence.
Understanding Thermal Mass Flow Measurement Technology
Thermal mass flow meters measure gas flow directly by detecting heat transfer from a heated sensor to the flowing gas stream. Unlike traditional volumetric flow meters, thermal mass flow technology measures mass flow without requiring additional temperature or pressure compensation. This direct measurement approach provides significant operational advantages in industrial environments where conditions fluctuate.
Key Benefits of Thermal Mass Flow Meters
Direct Mass Measurement Without Compensation
Fox Thermal mass flow meters measure gas flow in standard volumetric units (SCFM, NM³/H) or mass units (Kg/Hr, Lbs/Min) directly, eliminating the need for external pressure or temperature transmitters.

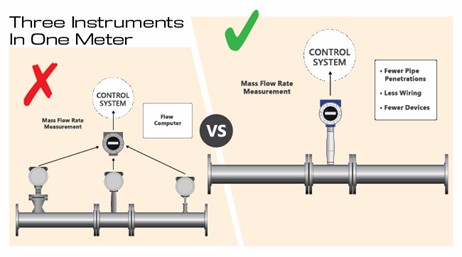

Rather than installing a pressure transmitter, temperature transmitter, flow meter, and flow computer, simplify the installation with one mass flow meter.
This capability reduces installation costs, simplifies system design, and improves measurement reliability.
Exceptional Low-Flow Sensitivity and Wide Turndown
Thermal mass flow meters excel at measuring very low velocity gas flows with turndown ratios typically reaching 100:1, far exceeding the 10:1 range of differential pressure flow meters like orifice plates. This outstanding low-flow capability makes thermal mass meters ideal for biogas measurement, vent gas monitoring, and flare gas applications where flow rates can vary.
No Moving Parts and Minimal Maintenance
The solid-state design of thermal mass flow meters features no moving parts, resulting in exceptional reliability and minimal maintenance requirements. Fox Thermal meters incorporate rugged sensors designed for harsh industrial environments, reducing downtime and extending service life.
Protection from Pressure and Temperature Variations
Because thermal mass flow meters count molecules rather than measure volume, they remain virtually unaffected by pressure and temperature variations. This characteristic ensures consistent accuracy even when process conditions change, eliminating measurement errors common with volumetric technologies.
Vortex Shedding Flow Meters: Versatility for Multiple Applications
Vortex shedding flow meters operate based on the von Kármán effect, where vortices form downstream of a bluff body placed in the flow stream. The frequency at which these vortices shed is directly proportional to flow velocity, enabling accurate flow measurement across liquids, gases, and steam applications.
The Fox Thermal VF3 and VF4 Advantage: Mass Flow Capability
While most vortex flow meters measure only volumetric flow and require external compensation for mass flow calculations, Fox Thermal's VF3 and VF4 vortex meters feature integrated multivariable measurement capability. These innovative meters incorporate temperature and pressure sensors directly into the flowmeter, enabling them to output compensated mass flow without requiring an external flow computer.
This multivariable design provides several critical advantages:
Simplified Installation and Reduced Costs
By integrating velocity, temperature, and pressure measurement in a single instrument, the VF3 and VF4 eliminate the need for separate transmitters and complex piping configurations. This integrated approach reduces installation time, lowers material costs, and minimizes potential leak points.
Wide Application Range
Fox Thermal vortex meters handle liquids, gases, and steam across a broad range of temperatures and pressures. The VF3 and VF4 can operate at steam pressures up to 1500 psig (100 bar), making them suitable for demanding high-pressure applications.
Energy Monitoring Capability
The VF3 and VF4 include an optional energy monitoring feature that calculates real-time energy consumption in BTU, joules, calories, or watt-hours for steam, hot water, and chilled water applications. This capability supports energy management initiatives and helps identify inefficiencies in thermal systems.
Outstanding Turndown Ratio
Fox Thermal vortex meters achieve turndown ratios up to 100:1, significantly exceeding the typical 10:1 range of orifice plate flow meters. This exceptional rangeability enables accurate measurement across highly variable flow conditions.

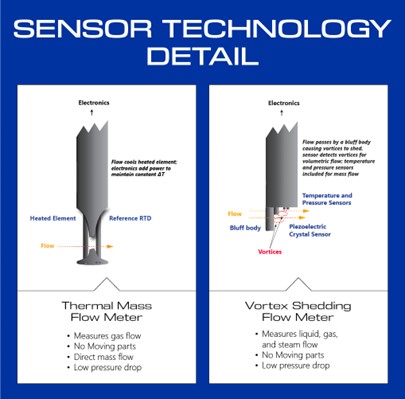

Comparison graphic highlighting thermal mass and vortex flow measurement technologies from Fox Thermal.
Selecting the Right Technology for Your Application
Both thermal mass and vortex shedding technologies excel in specific applications, and understanding these strengths helps engineers make informed decisions.
When to Choose Thermal Mass Flow Meters
Thermal mass flow meters like the FT1, FT4A, and FT4X from Fox Thermal are the preferred choice for:
- Flare and vent gas monitoring where very low flows must be measured accurately and regulatory compliance requires mass flow reporting
- Biogas and digester gas measurement in wastewater treatment and agricultural applications requiring sensitive detection of methane and mixed gases
- Natural gas and fuel gas monitoring where direct mass measurement eliminates the complexity of temperature and pressure compensation
- Compressed air monitoring where wide turndown capability accommodates fluctuating demand
- Applications with varying pressure or temperature where volumetric meters would require constant recalibration
When to Choose Vortex Shedding Flow Meters
Fox Thermal's VF3 and VF4 vortex meters are ideal for:
- Steam flow measurement in process heating, power generation, and energy accounting applications where thermal mass meters cannot be used
- High-pressure gas applications up to 1500 psig where integrated mass flow capability provides accurate measurement
- Single-phase liquid flow monitoring in clean liquids where wide rangeability is required
- Applications requiring energy monitoring in steam, hot water, or chilled water systems
- Installations where inline or insertion mounting provides advantages over alternative technologies
Fox Thermal Innovation: Calibration Validation with CAL-V™
Thermal mass flow meters from Fox Thermal feature an industry-leading in-pipe calibration validation routine called CAL-V™. This innovative feature allows operators to validate meter calibration accuracy by testing sensor functionality and signal processing circuitry without removing the meter from service. It ensures the meter retains its original NIST-traceable calibration even during flow conditions. The validation capability reduces maintenance costs, minimizes process interruptions, and provides documented proof of calibration integrity for regulatory compliance. The CAL-V feature is available on models FT1, FT4A, and FT4X thermal mass flow meters.
Real-World Performance in Demanding Environments
Fox Thermal flow meters deliver proven performance across challenging industrial applications. In oil and gas operations, Fox Thermal flow meters accurately measure flare gas to within regulatory requirements while withstanding harsh outdoor conditions in remote locations. Wastewater treatment facilities rely on Fox meters to monitor air from blowers and biogas production from anaerobic digesters, helping operators maximize energy recovery and monetize carbon credits. Industrial processing plants use Fox vortex meters for steam flow measurement and energy accounting, achieving the accuracy needed for process optimization and cost allocation.
Making Flow Measurement Work for You
Selecting between thermal mass and vortex shedding technology—or determining where each fits in your facility—requires careful consideration of process conditions, fluid properties, and measurement objectives. Fox Thermal's range of both technologies ensures you can specify the optimal solution for each application while benefiting from consistent quality, reliable performance, and responsive support.
Ready to explore how Fox Thermal flow meters can improve your process efficiency? Visit our thermal mass flow meters and vortex shedding flow meters product pages to compare features and specifications. For application-specific guidance, connect with our technical experts who can help you select and configure the right flow measurement solution for your unique requirements.
TALK TO AN EXPERT >>
Frequently Asked Questions
What is the main difference between thermal mass flow meters and vortex flow meters?
Fox Thermal’s models FT1, FT2A, FT3, FT4A, and FT4X thermal mass flow meters directly measure gas mass flow using heat transfer principles and do not require temperature or pressure compensation. Vortex flow meters measure volumetric flow based on vortex shedding frequency and typically require compensation for mass flow. However, Fox Thermal's VF3 and VF4 vortex meters offer integrated temperature and pressure sensors to provide compensated mass flow output directly.
How does the 100:1 turndown ratio benefit my operations?
A 100:1 turndown ratio means the flow meter can accurately measure flow rates from 1% to 100% of the maximum range, providing reliable measurements across highly variable flow conditions. This wide rangeability eliminates the need for multiple meters, reduces spare parts inventory, and ensures accurate measurement during startup, shutdown, and normal operation.
What makes Fox Thermal's vortex meters different from other vortex flow meters?
Fox Thermal's vortex meters offer integrated multivariable measurement with temperature and pressure sensors, enabling direct mass flow output without external compensation or flow computers. Most competitive vortex meters measure only volumetric flow and require separate transmitters for mass flow calculation. In addition, the VF3 is a hot-tappable insertion style vortex flow meter available with various process connection styles.
How often do Fox Thermal flow meters require calibration?
Models FT1, FT4A, and FT4X thermal mass flow meters from Fox Thermal include CAL-V™ in-pipe calibration validation that allows operators to verify calibration accuracy without removing the meter from service. Vortex shedding flow meters from Fox Thermal have calibration that is good for the life of the meter. All Fox meters are supplied with NIST-traceable calibration certificates, and the solid-state design with no moving parts provides excellent long-term stability, reducing recalibration frequency compared to mechanical flow meters.
