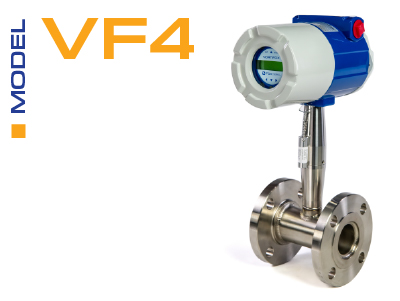

Vortex Shedding Flow Meters

Vortex Shedding Technology

Vortex flow meters measure fluid velocity using a principle of operation referred to as the von Kármán effect. It states that when flow passes by an obstruction in the flow path, vortices are generated in a repeating pattern.

In a Vortex flow meter, this obstruction is often referred to as a bluff body. The bluff body causes the process fluid to separate and form areas of alternating differential pressure known as vortices around the backside of the bluff body. In VortiFox vortex flowmeters, a sensitive piezoelectric crystal sensor detects these vortices. The frequency at which the vortices are shed is directly proportional to the flow velocity. With the fluid velocity and area of the pipe known, a volumetric flow rate is calculated.

With optional integrated temperature and pressure sensors, VortiFox vortex flowmeters can provide a compensated mass flow rate. With the energy monitoring option, VortiFox meters can also provide a reliable (BTU) energy measurement of water, thermal oils, and steam.

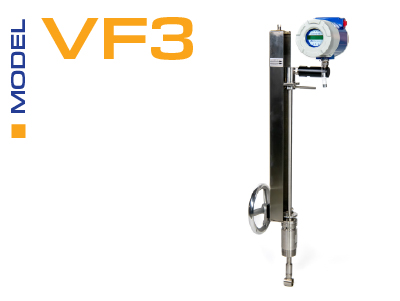

Insertion style vortex flowmeters are a more economical option on large line sizes and can be installed under full process conditions by hot tap.

Vortex Flow Meters

• Measures gas, liquid, and steam
• Multivariable outputs for multiple process parameters:
• Mass flow rate
• Volumetric flow rate
• Temperature
• Pressure
• Density
• Energy (BTU)
• Field-configurable ranges, alarms, outputs, and displays
• Smart DSP electronics extends low-flow range down to a Reynolds number of 5,000
• Rangeability up to 100:1
• Temperature up to 750°F (400°C)
• Pressure up to 1,500 psia (100 bara)
• Mass flow equations for real gas, ideal gas, AGA-8 equations for natural gas, API 2540
• Advanced serial communication options: HART, BACnet/IP, Modbus TCP/IP, BACnet MS/TP, Modbus RTU, and PoE
